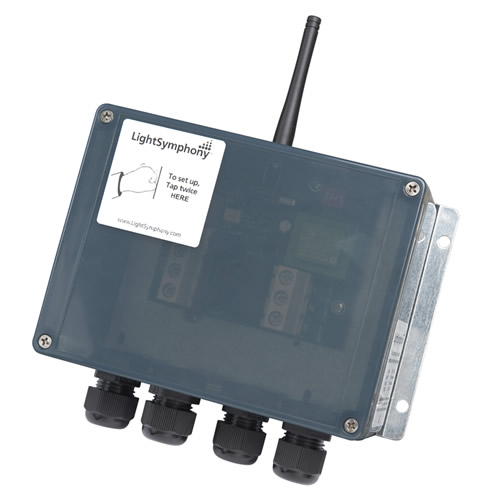

Light Symphony 2-Channel Lighting Control Module

£174.90 £209.88 (inc vat)

This Lighting Control Module provides 2 wirelessly controllable outputs, each rated at 1000W and suitable for all load types. It provides flexible control for any lighting circuit or pump and is quickly configurable as a simple switch, group (zone) or scene controller, with 29 memories and a master on/off. Outputs 1 & 2 can be programmed as switched or dimmable. The dimming mode provides a soft-on, soft-off feature with filament pre-heating, which can greatly increase lamp life. User-dimming is available on output 1 and can be enabled on output 2 if the load is limited to 500W per channel. The separately fused outputs are fully protected against over current and over temperature. The built-in signal-strength indicator, zero-volt mains switching and power-on surge protection all enhance reliability. Lid-on programming speeds commissioning and reduces the risk of water ingress.

In stock

SKU: LS30500LCM Category:

Light Symphony 2 Channel Lighting Control Module

This Light Symphony 2 Channel Lighting Control provides 2 wirelessly controllable outputs, each rated at 1000W and suitable for all load types. It provides flexible control for any lighting circuit or pump and is quickly configurable as a simple switch, group (zone) or scene controller, with 29 memories and a master on/off. Outputs 1 & 2 can be programmed as switched or dimmable. The dimming mode provides a soft-on, soft-off feature with filament pre-heating, which can greatly increase lamp life.

User-dimming is available on output 1 and can be enabled on output 2 if the load is limited to 500W per channel. The separately fused outputs are fully protected against over current and over temperature. The built-in signal-strength indicator, zero-volt mains switching and power-on surge protection all enhance reliability. Lid-on programming speeds commissioning and reduces the risk of water ingress.

Max Wattage

1KW per channel
Range

350m
Channels

2
IP Rating

IP66
Features

Dimmable, Smooth on – off

2 Channel Instructions

Download File

2 Channel data sheet

Download File
