Pro Solar Eccentrica – Angled Solar Path Lights
From: £235.00
UK Registered Design: 6089623

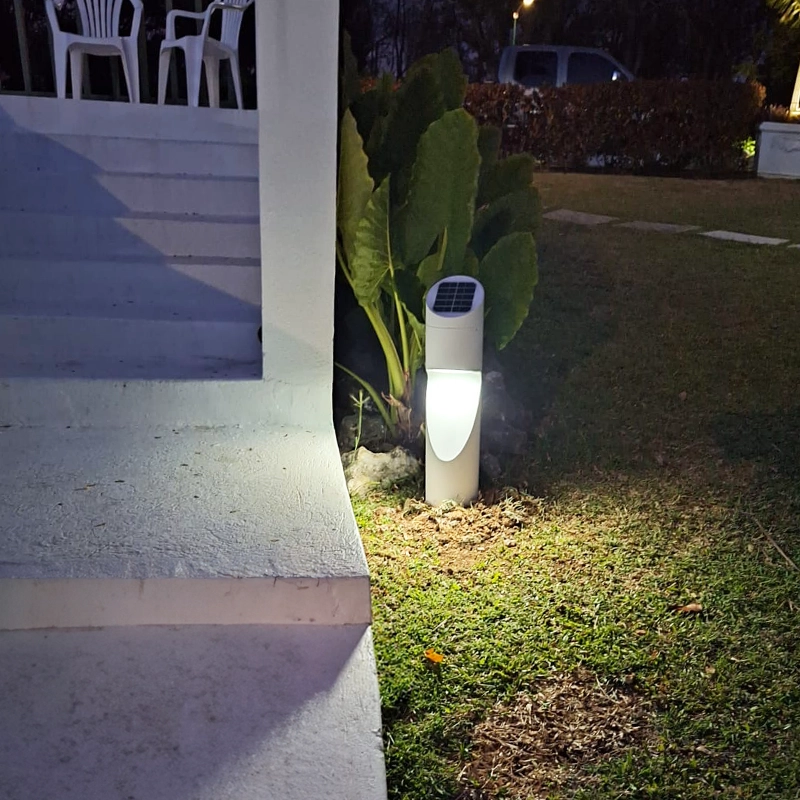

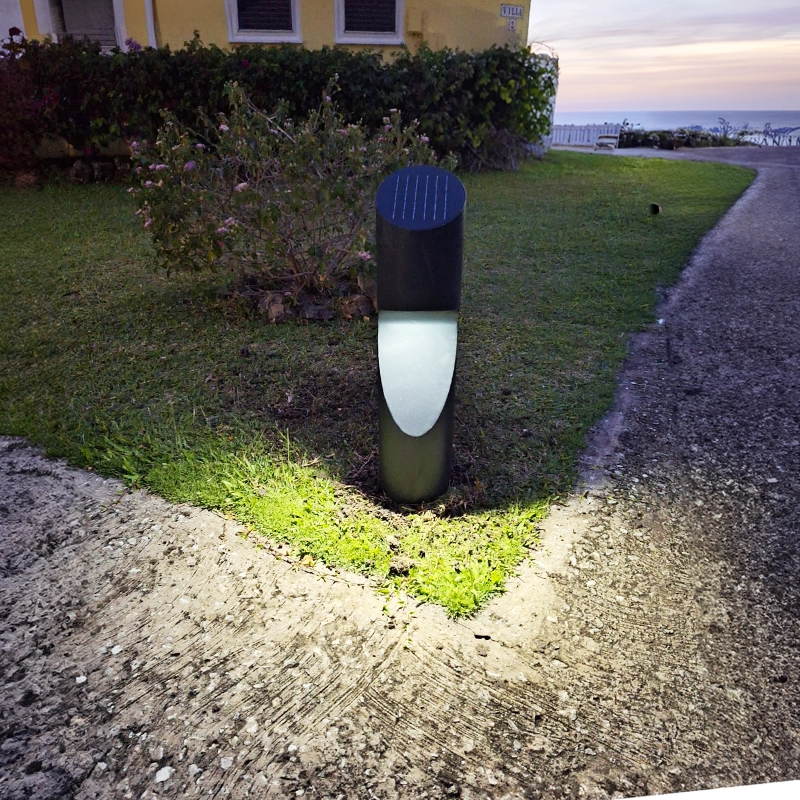

The Eccentrica angled solar path light is available in both a matt white finish and a black finish in warm and daylight white. There are many benefits to this unique design. Firstly, the light source angles downwards illuminating the path below resulting in no glare. Secondly, the solar panel top is also angled, preventing rain water sitting on the solar bollard. This also makes this design ideal for public areas and holiday parks, preventing people sitting and placing objects on top of the bollard. In addition, the solar panel can be removed and rotated to 6 different positions to ensure the panel is south facing, even when light is required in a different direction.
Upgrade to a remote control for brightness adjustability and timer mode functionality.
Please note, if located very close to the coast, this may affect the finish of the bollard.
Please allow up to 2-3 working days for delivery.
Pro Solar Angled Path Light – 800mm
The Eccentrica angled solar path light is available in both a matt white finish and a black finish in warm and daylight white. There are many benefits to this unique design. Firstly, the light source angles downwards illuminating the path below resulting in no glare. Secondly, the solar panel top is also angled, preventing rain water sitting on the solar bollard. This also makes this design ideal for public areas and holiday parks, preventing people sitting and placing objects on top of the bollard. In addition, the solar panel can be removed and rotated to 6 different positions to ensure the panel is south facing, even when light is required in a different direction. The Eccentrica has an impressive 5 year guarantee.
KEY FEATURES
- Angled, Adjustable Monocrystalline Solar Panel (up to 25 year life)
- Replaceable LiFePO4 Lithium Battery (LFP long life)
- High Output Daylight or Warm White Epistar LEDs
- Down Light / Spread Light (anti-glare)
- Durable Die Cast Aluminium
- Matt White or Satin Black Finish
At dusk, the Eccentrica angled solar path light will illuminate at full brightness, and then follow a gradual 5 hour dimming sequence until it reaches 30% brightness. It will then remain at 30% until dawn or until the battery is depleted (possible during long, cloudy periods). As a result of this dimming sequence, battery charge is retained for longer. Even in cloudy weather, our solar lights will still illuminate, although they may not last the entire night cycle, which in many cases is not absolutely necessary.
A subtle, waterproof, rubber bung conceals the on/off switch which finishes off the bollard nicely. Upgrade to a remote control for brightness adjustability and timer mode functionality. The remote control allows for choice between 4hr, 6hr, 8hr, 10hr and ‘dusk to dawn’ timer modes.
Epistar LED chips (2W) generate a highly effective lumen output with up to 50,000 hours life. The monocrystalline solar panel and replaceable LifePO4 lithium battery ensure optimum charge levels are maintained.
The Eccentrica Solar Bollard is both simple and safe to install, with flexibility on positioning in comparison to mains fittings. Experiment with positioning prior to fixing into place. Solar Path Lights are also environmentally friendly, converting natural energy into electrical current. Plus, solar lighting has no running costs.
Please allow up to 2-3 working days for delivery.
| Range | Pro-Solar |
|---|---|
| Finish | Black (powder coated), White (powder coated) |
| LEDs | Epistar LED Chips |
| Wattage | 2w |
| Lumen Output | 240lm |
| Colour Temperature (kelvins) | Daylight White – 6000K – 6500K, Warm White – 3000K |
| Beam Angle | 120 Degrees |
| Illumination Time | Up to 23 Hours at Full Charge |
| LED Expected Life | Up to 50,000 hours |
| Sensor | Light Sensor (Photoreceptor) |
| IP Rating | IP65 |
| Battery Type | 3.2v 6AH LiFePO4 Lithium Battery – REPLACEABLE |
| Solar Panel | 5V / 3.5W Monocrystalline Solar Panel – approx 25 year life |
| Charging Time | 6 hours (AM1.5 1000W / m² 25ºC) |
| Discharge Time (from full charge) | 23 hours |
| Working Temperature | -25ºC ~ 55ºC |
| Weight | 3.8KG (net), 4.4KG (gross) |
| Materials | 6063 Aluminium, Tempered Glass |
| Mounting Options | Internal Surface Mount |
| Dimensions | Height = 800mm |
| Guarantee | 5 Years |
| Light Spread | 1.5m diameter |
| Mounting Option | Surface Mount (As Standard), Root Mount J-Bolts Kit (+£7.50), Ground Spike Kit (+£35.00) |
| Certification | UKCA, CE, RoHS |
| UK Registered Design | 6089623 |
| Waste Disposal / Recycling | Batteries: BPRN0843, Electrical: WEE/KC3440XY |
Light Pollution & Colour Temperature
Reducing light pollution is crucial for protecting wildlife, preserving natural ecosystems, and maintaining our ability to stargaze. Always try to use the minimal light output required for your application, rather than unnecessarily excessive outputs. Excessive artificial light disrupts the behavior of nocturnal animals, including bats, which rely on darkness for feeding and navigation. Our “bat-friendly” lights are specifically designed to minimize light spill and reduce disturbances to bat habitats. By using these lights, we can provide safer environments for wildlife while ensuring outdoor spaces remain well-lit and functional.
Warmer colour temperatures have a less disruptive impact on wildlife and help reduce star-warping. For instance, bats are less affected by red-toned lights, which produce orange or yellow hues, compared to cooler, daylight white or blue lights higher in the spectrum. Blue light, being the most harmful for light pollution, should be minimised. The best solution is to use colour temperatures of 3000K or lower, with 2700K often referred to as “bat-friendly” lighting.
Light Intensity – Wattage VS Lumens
Battery Retention & Charging
Battery retention in solar products is crucial for ensuring reliable performance over time. High-quality batteries, such as LiFePO4 (Lithium Iron Phosphate) and Lithium-ion, maintain their charge capacity for longer, even with repeated charging cycles. While Ni-MH batteries are suitable for certain applications, they generally do not match the longevity and efficiency of LiFePO4 or Lithium-ion in solar setups. This is often reflected in the price. Proper battery management, like avoiding overcharging, deep discharging, or storing for long periods, will extend battery life. In addition, high-quality solar panels, such as monocrystalline or polycrystalline, perform well in the UK. The larger the panel surface area, the faster the battery will charge. Lumena have incorporated UK-specific dimming sequences into many solar bollard designs to reduce light output throughout the night when less light is required. As a result, this helps to retain battery charge for longer, as do motion sensors. Regular maintenance and choosing products with quality solar technology are key to maximising retention and longevity.
Automation – Light & Motion Sensors
Light sensors are devices that detect and respond to changes in light levels in their environment. These sensors are useful in automating various systems, helping to optimise energy use and improve safety. Dusk-to-dawn sensors, for example, automatically turn lights on at sunset and off at sunrise, ensuring lights are only used when necessary. Motion sensors detect movement, triggering lights to turn on when activity is detected, providing convenience and enhancing security. Both types of sensors are commonly used in outdoor lighting systems to save energy and increase efficiency.
PHOTOCELL / DUSK TO DAWN – A PC (Photo Control) or Dusk-to-Dawn sensor automatically turns lights on at dusk and off at dawn, using natural light levels to detect the time of day. This sensor is ideal for outdoor lighting, as it ensures lights are only activated when needed, improving energy efficiency and convenience. Dusk-to-Dawn solar light often incorporate dimming sequences to help prolong battery life and reduce light output at times of reduced footfall.
PHOTO-RECEPTOR – A photo-receptor in lighting is a more general term for any light-sensitive element that detects light levels and converts them into an electrical signal. It can be used in various lighting control systems, particularly in solar lighting.
PIR MOTION SENSOR – A PIR (Passive Infrared) sensor detects motion by sensing changes in infrared radiation, typically emitted by human bodies or animals. It is a cost-effective and energy-efficient way to automatically activate lighting when motion is detected, ensuring lights are only on when needed. PIR sensors help save energy, reduce unnecessary lighting, and improve security by providing illumination when movement is sensed in a given area.
MICROWAVE MOTION SENSOR – A microwave sensor uses high-frequency electromagnetic waves to detect motion, even through walls or obstructions, by measuring changes in the reflected waves caused by movement. It is highly sensitive and can detect smaller movements, making it ideal for areas where precise motion detection is needed. Microwave sensors are great for enhancing security and energy efficiency, as they activate lights or alarms only when movement is detected, reducing energy waste.
Mounting
Surface mount bollards are installed on top of an existing solid surface, such as concrete or asphalt. Depending on the surface various types of bolts can be used, with expanding anchor bolts being one of the most secure options. They are a versatile option for locations where digging into the ground isn’t feasible or where temporary installation is preferred. These bollards offer easy installation and relocation, making them ideal for flexible or non-permanent applications.
Surface mounted bollards can be securely fixed to the ground using J-bolts. These would be attached to the surface mount with the bolts sunk into a wet concrete base, rather than the tube buried in the ground. This installation method provides a strong, stable foundation while allowing for easy removal or replacement if needed. These bollards are ideal for permanent installations in areas where digging or extensive groundwork is not an option, offering both durability and flexibility.
Surface mount bollards with in-ground spikes are designed to be anchored to soft ground with a spike that drives into the ground beneath the bollard. This method offers strong stability while being easier to install than traditional root mounts, as it requires no concrete or extensive digging. They are great choice for private locations where a secure yet removable bollard is needed, providing a durable solution with quick and easy installation.
Root mount bollards are buried directly into the ground and set into wet concrete up to 400mm, providing a stable and permanent solution for protecting property or guiding traffic. They are ideal for areas where long term durability is needed, as they offer strong resistance to impact and are less likely to shift over time. Their secure installation makes them a great choice for high traffic or high risk environments. Our professional root mount system results in the tubular body being extended by 300-400mm and supplied with an anchor bar.
IK Ratings
The IK Rating measures a product’s resistance to mechanical impacts. It ranges from IK01 to IK10, with IK10 offering the highest level of protection. IK01 means minimal impact protection, while IK10 indicates a product is highly resistant to damage. Higher IK ratings mean the product can withstand more severe impacts without breaking.
When selecting outdoor lighting, consider the environment. If the area is prone to vandalism or accidental damage, a higher IK rating is recommended to ensure the fixture lasts longer.
IP Ratings
An IP (Ingress Protection) Rating indicates how well an outdoor light fitting is protected against specific conditions. It consists of two numbers: the first indicates protection against solid objects like hands or dust, while the second shows protection against water. The numbers range from 0 to 6 for solids and 0 to 8 for liquids, with 0 being no protection. The highest rating is IP68, meaning the fitting is fully protected from both solids and liquids and can be submerged in water. For outdoor lights, a minimum IP rating of IP43 is recommended for adequate protection.
Light Pollution & Colour Temperature
Reducing light pollution is crucial for protecting wildlife, preserving natural ecosystems, and maintaining our ability to stargaze. Always try to use the minimal light output required for your application, rather than unnecessarily excessive outputs. Excessive artificial light disrupts the behavior of nocturnal animals, including bats, which rely on darkness for feeding and navigation. Our “bat-friendly” lights are specifically designed to minimise light spill and reduce disturbances to bat habitats. By using these lights, we can provide safer environments for wildlife while ensuring outdoor spaces remain well-lit and functional.
Warmer colour temperatures have a less disruptive impact on wildlife and help reduce star-warping. For instance, bats are less affected by red-toned lights, which produce orange or yellow hues, compared to cooler, daylight white or blue lights higher in the spectrum. Blue light, being the most harmful for light pollution, should be minimised. The best solution is to use colour temperatures of 3000K or lower, with 2700K often referred to as “bat-friendly” lighting.
Light Intensity – Wattage VS Lumens
Battery Retention & Charging
Battery retention in solar products is crucial for ensuring reliable performance over time. High-quality batteries, such as LiFePO4 (Lithium Iron Phosphate) and Lithium-ion, maintain their charge capacity for longer, even with repeated charging cycles. While Ni-MH batteries are suitable for certain applications, they generally do not match the longevity and efficiency of LiFePO4 or Lithium-ion in solar setups. This is often reflected in the price. Proper battery management, like avoiding overcharging, deep discharging, or storing for long periods, will extend battery life. In addition, high-quality solar panels, such as monocrystalline or polycrystalline, perform well in the UK. The larger the panel surface area, the faster the battery will charge. Lumena have incorporated UK-specific dimming sequences into many solar bollard designs to reduce light output throughout the night when less light is required. As a result, this helps to retain battery charge for longer, as do motion sensors. Regular maintenance and choosing products with quality solar technology are key to maximising retention and longevity.
Remote Controls
Remotes are beneficial for solar lights for several reasons:
- Customisable Settings: With a remote, users can adjust settings such as brightness, lighting modes, or activation times to suit specific needs. This includes dimming the lights, timers or turning them off manually.
- Energy Efficiency: By adjusting settings via remote control, battery usage is reduced, thus retaining charge for longer. Dimming, time control and manual override all help to extend the life of the rechargeable battery.
- Enhanced Control: For installations with multiple solar luminaires, a remote allows users to adjust settings for each individual unit based on install location and requirements, rather than all functioning in exactly the same way.
Overall, remotes add practicality, energy savings, and ease of operation to solar lighting systems.
Automation – Light & Motion Sensors
Light sensors are devices that detect and respond to changes in light levels in their environment. These sensors are useful in automating various systems, helping to optimise energy use and improve safety. Dusk-to-dawn sensors, for example, automatically turn lights on at sunset and off at sunrise, ensuring lights are only used when necessary. Motion sensors detect movement, triggering lights to turn on when activity is detected, providing convenience and enhancing security. Both types of sensors are commonly used in outdoor lighting systems to save energy and increase efficiency.
TIMERS – Time controls are useful for automating the operation of luminaires, ensuring they run only when needed, which boosts energy efficiency. They also offer convenience by removing the need for manual intervention, while enhancing security by simulating activity, deterring potential intruders. Overall, they help optimise energy use and preserve equipment.
PHOTOCELL / DUSK TO DAWN – A PC (Photo Control) or Dusk-to-Dawn sensor automatically turns lights on at dusk and off at dawn, using natural light levels to detect the time of day. This sensor is ideal for outdoor lighting, as it ensures lights are only activated when needed, improving energy efficiency and convenience. Dusk-to-Dawn solar light often incorporate dimming sequences to help prolong battery life and reduce light output at times of reduced footfall.
PHOTO-RECEPTOR – A photo-receptor in lighting is a more general term for any light-sensitive element that detects light levels and converts them into an electrical signal. It can be used in various lighting control systems, particularly in solar lighting.
PIR MOTION SENSOR – A PIR (Passive Infrared) sensor detects motion by sensing changes in infrared radiation, typically emitted by human bodies or animals. It is a cost-effective and energy-efficient way to automatically activate lighting when motion is detected, ensuring lights are only on when needed. PIR sensors help save energy, reduce unnecessary lighting, and improve security by providing illumination when movement is sensed in a given area.
MICROWAVE MOTION SENSOR – A microwave sensor uses high-frequency electromagnetic waves to detect motion, even through walls or obstructions, by measuring changes in the reflected waves caused by movement. It is highly sensitive and can detect smaller movements, making it ideal for areas where precise motion detection is needed. Microwave sensors are great for enhancing security and energy efficiency, as they activate lights or alarms only when movement is detected, reducing energy waste.
Eccentrica Instructions
It is important that anybody installing or carrying out maintenance on Lumena Products, refer to the instruction manual prior to commencing work. Lumena Lights ensure instructions available online are completely up to date and accurate.
